Mysql exporter

ZoomPhant provides an easy way for you to monitor mysql.

Creating mysql monitoring

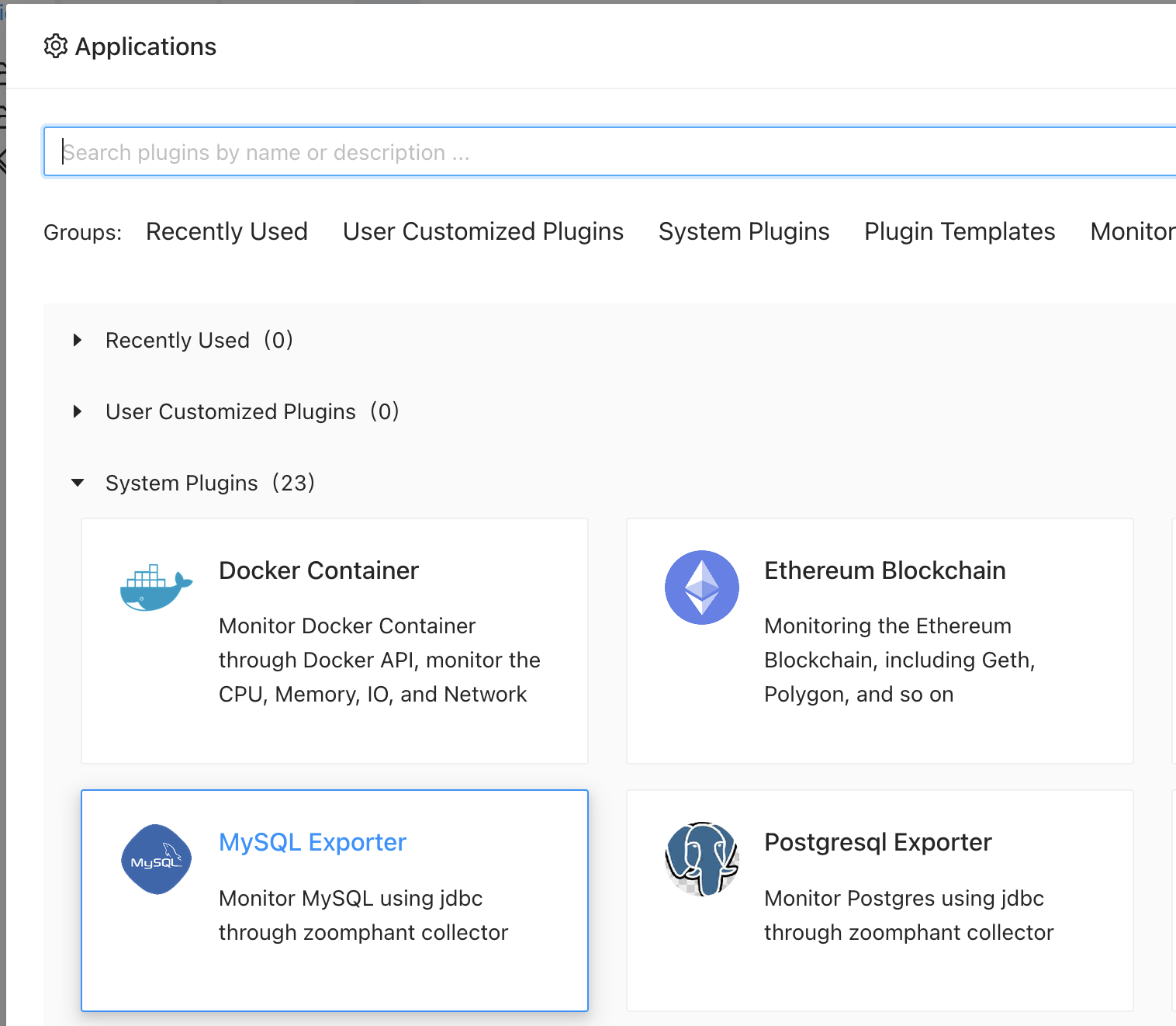

To monitor mysql, you can choose the Mysql exporter plugin as shown in Add Monitor Service and provide following necessary parameters to create a monitoring service:

image-20260930165105825

  • jdbc.url: required. the jdbc url. below are some examples:

    Database typejdbc.url example
    SQL Serverjdbc:sqlserver://localhost:1433;databaseName=mydatabase;user=myuser;password=mypassword
    MySQLjdbc:mysql://localhost:3306/mydatabase
    Postgres SQLjdbc:postgresql://localhost:5432/mydatabase
    Oraclejdbc:oracle:thin:@//localhost:1521/XE
    Clickhousejdbc:clickhouse://localhost:8123/default

  • jdbc.user: optional. the jdbc user.

  • jdbc.password: optional. the jdbc password.

Note: we will run the sql query in READONLY mode to keep your data secure.
